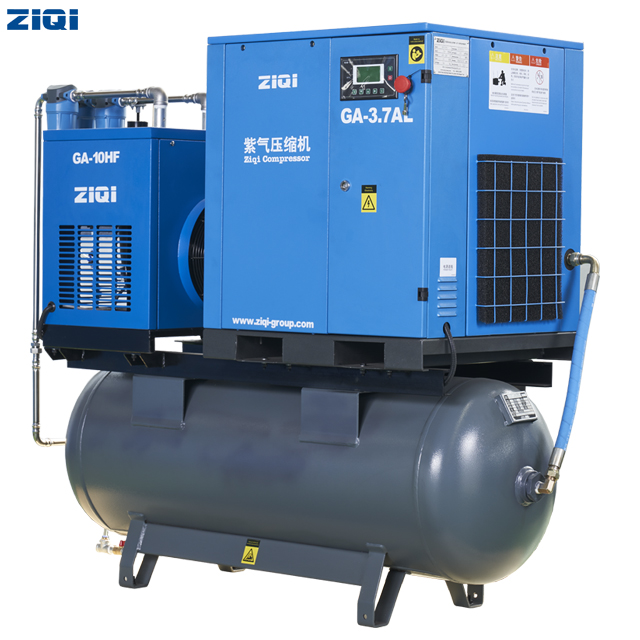

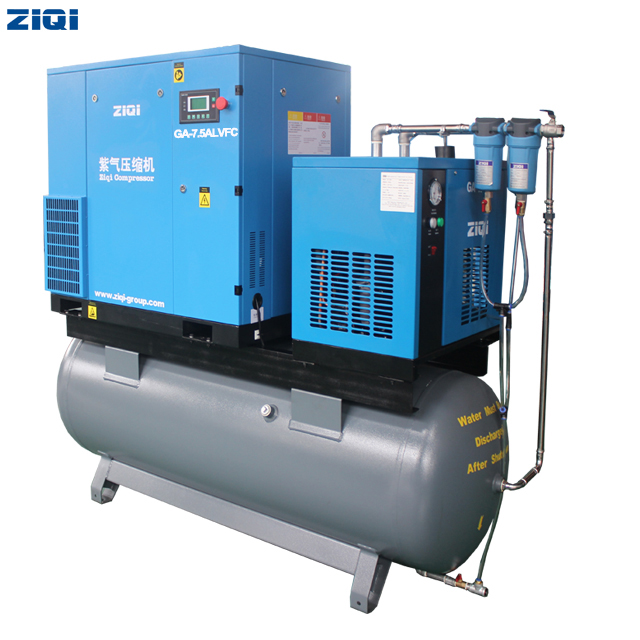

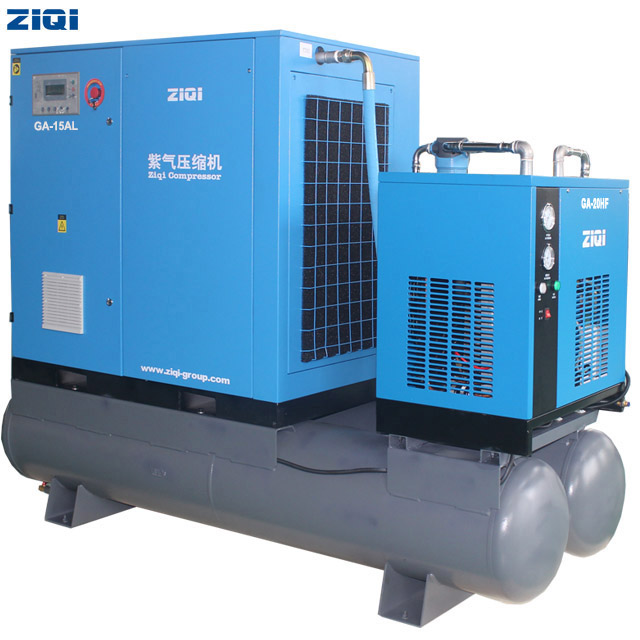

GA-AL Series: Combined Screw Compressor with Dryer & Tank
Combines a rotary screw compressor, refrigerated air dryer, precision filters, and air receiver tank into one compact unit. Saves up to 50% floor space.
Compact: No need for separate piping
Leak-Free: Minimized connection points
Efficiency: Optimized airflow path
Pre-piped and pre-wired at the factory. No complex installation required. Just connect the power and air outlet to start working immediately.
Fast: Deploy in minutes, not days
Cost-Saving: No extra installation fees
Mobile: Easily moveable with forklift slots
Built-in refrigerated dryer and multi-stage precision filters remove moisture and oil particles (0.01 micron), ensuring clean air for your tools.
Quality: Protects pneumatic equipment
Dryer: Dew point 2-10°C guaranteed
Fully enclosed soundproof cabinet design reduces noise levels to as low as 62 dB(A). Perfect for installation directly in the workshop.
Comfort: No separate compressor room needed
Vibration: Anti-vibration mounting
Equipped with a 300L/500L horizontal air tank to buffer pressure fluctuations and reduce compressor loading/unloading cycles.
Stable: Constant pressure output
Energy: Reduces motor start-up frequency
| Feature | Traditional Separate System | ZIQI Combined System |
|---|---|---|
| Installation | Complex Piping & Wiring | Zero Installation (Plug & Play) |
| Space Required | Large (Multiple Units) | Compact (All-in-One) |
| Leakage Risk | High (Many Joints) | Low (Integrated Piping) |
| Air Quality | Dependent on separate dryer | Guaranteed Dry & Clean |
| Mobility | Fixed / Hard to move | Easy to Relocate |
Representative Models (380V/50Hz)
| Model | Power (kW) | Pressure (MPa) | Air Delivery (m³/min) | Tank Size (L) | Noise dB(A) |
|---|---|---|---|---|---|
| GA-5.5AL | 5.5 | 0.8 - 1.0 | 0.6 - 0.7 | 300 | 62±2 |
| GAS-7.5AL | 7.5 | 0.8 - 1.0 | 1.1 - 1.2 | 300/500 | 62±2 |
| GAS-11AL | 11 | 0.8 - 1.0 | 1.5 - 1.7 | 500 | 63±2 |
| GAS-15AL | 15 | 0.8 - 1.0 | 2.3 - 2.5 | 500 | 63±2 |
| GAS-18.5AL | 18.5 | 0.8 - 1.0 | 2.6 - 3.2 | 500 | 63±2 |
| GAS-22AL | 22 | 0.8 - 1.0 | 3.0 - 3.6 | 500 | 63±2 |
* Includes: Compressor + Tank + Dryer + Filters. Dimensions vary by tank size.
| Model | Air pressure | Air flowing | Motor power | Driving mode&Cooling method | Dimension | Weight | Noise | Air outlet pipe | ||||||
| mpa | bar(e) | psi(g) | m3/min | cfm | hp | kw | L(mm) | W(mm) | H(mm) | Kgs | dB(A) | mm | ||
| GA-3.7AL | 0.7 | 7 | 102 | 0.55 | 19 | 5 | 3.7 | Belt drive&air cooling | 1800 | 630 | 1450 | 360 | 60±2 | 20 |
| 0.8 | 8 | 116 | 0.45 | 16 | ||||||||||
| 1 | 10 | 145 | 0.35 | 12 | ||||||||||
| GA-5.5AL | 0.7 | 7 | 102 | 0.8 | 28 | 7 | 5.5 | 1800 | 630 | 1450 | 360 | 61±2 | 20 | |
| 0.8 | 8 | 116 | 0.7 | 25 | ||||||||||
| 1 | 10 | 145 | 0.6 | 21 | ||||||||||
| 1.3 | 13 | 189 | 0.5 | 18 | ||||||||||
| GA-7.5AL | 0.7 | 7 | 102 | 1.3 | 46 | 10 | 7.5 | 1800 | 750 | 1600 | 520 | 62±2 | 20 | |
| 0.8 | 8 | 116 | 1.2 | 42 | ||||||||||
| 1 | 10 | 145 | 1.1 | 39 | ||||||||||
| 1.3 | 13 | 189 | 0.9 | 32 | ||||||||||
| GA-11AL | 0.7 | 7 | 102 | 1.8 | 64 | 15 | 11 | 1800 | 750 | 1600 | 530 | 63±2 | 20 | |
| 0.8 | 8 | 116 | 1.7 | 60 | ||||||||||
| 1 | 10 | 145 | 1.5 | 53 | ||||||||||
| 1.3 | 13 | 189 | 1.2 | 42 | ||||||||||
| GA-15AL | 0.7 | 7 | 102 | 2.7 | 95 | 20 | 15 | 2300 | 890 | 1725 | 850 | 66±2 | 25 | |
| 0.8 | 8 | 116 | 2.5 | 88 | ||||||||||
| 1 | 10 | 145 | 2.3 | 81 | ||||||||||
| 1.3 | 13 | 189 | 2 | 71 | ||||||||||
| GA-18.5AL | 0.7 | 7 | 102 | 3.2 | 113 | 25 | 18.5 | 2300 | 890 | 1725 | 870 | 67±2 | 25 | |
| 0.8 | 8 | 116 | 3 | 106 | ||||||||||
| 1 | 10 | 145 | 2.8 | 99 | ||||||||||
| 1.3 | 13 | 189 | 2.4 | 85 | ||||||||||
| GA-22AL | 0.7 | 7 | 102 | 3.8 | 134 | 30 | 22 | 2300 | 890 | 1725 | 890 | 67±2 | 25 | |
| 0.8 | 8 | 116 | 3.6 | 127 | ||||||||||
| 1 | 10 | 145 | 3.2 | 113 | ||||||||||
| 1.3 | 13 | 189 | 2.8 | 99 | ||||||||||
