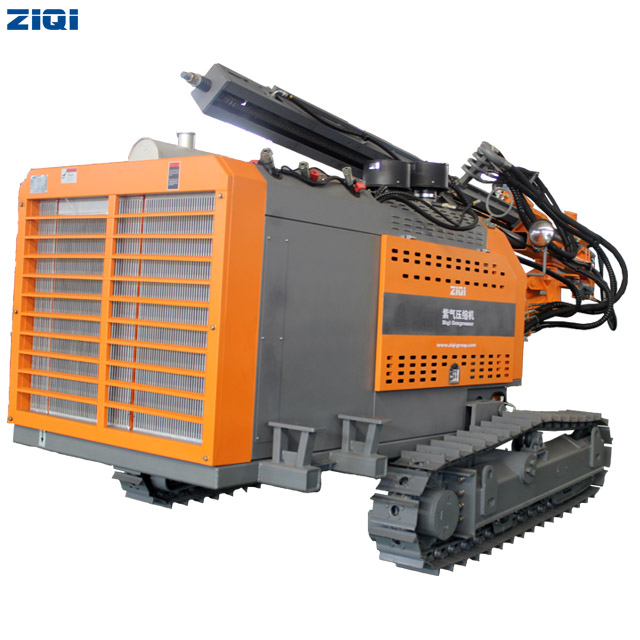

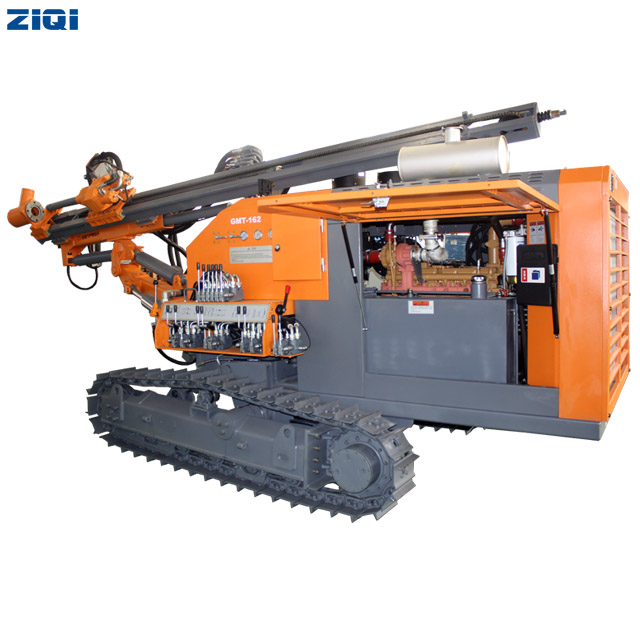

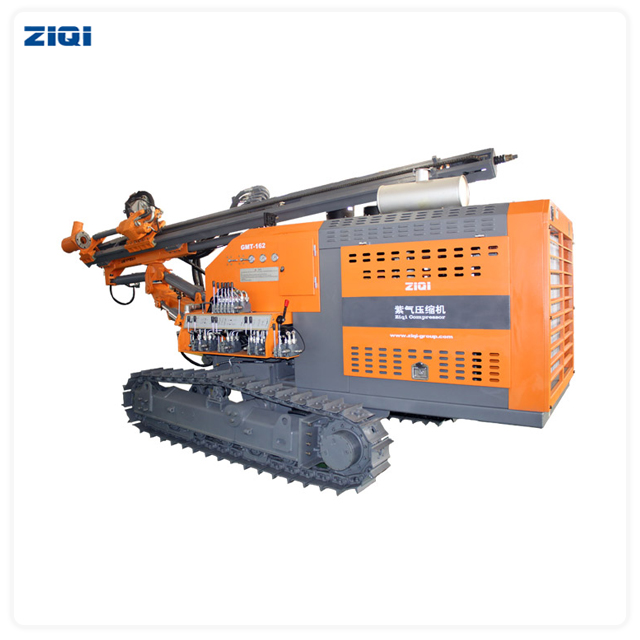

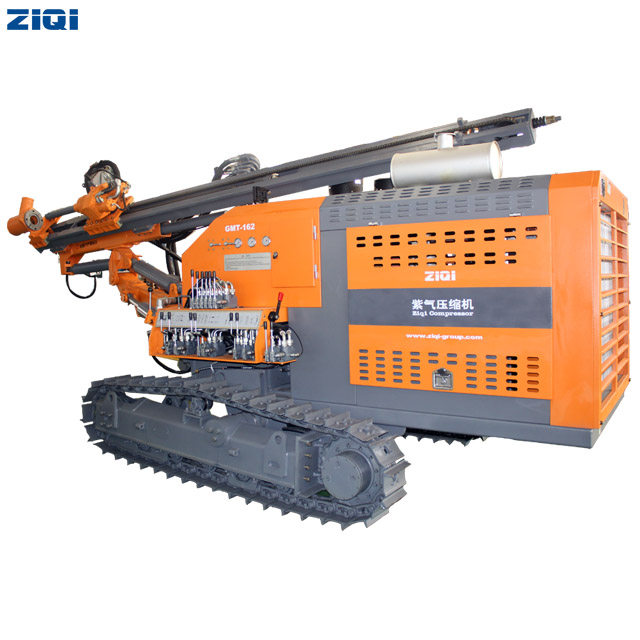

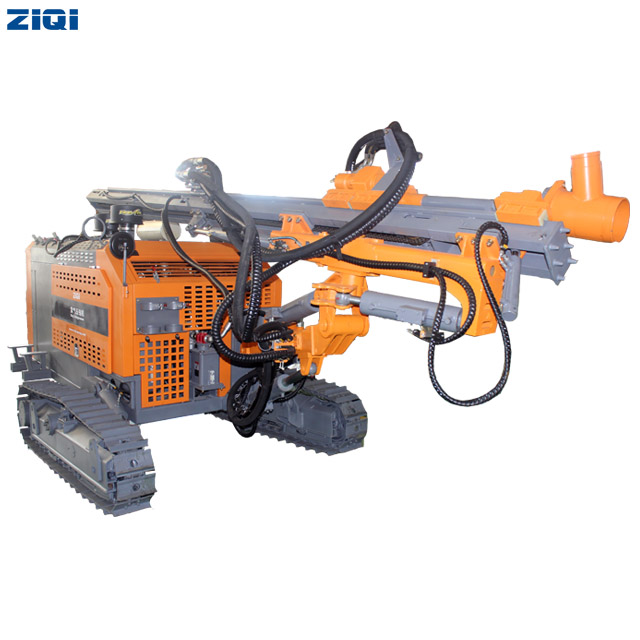

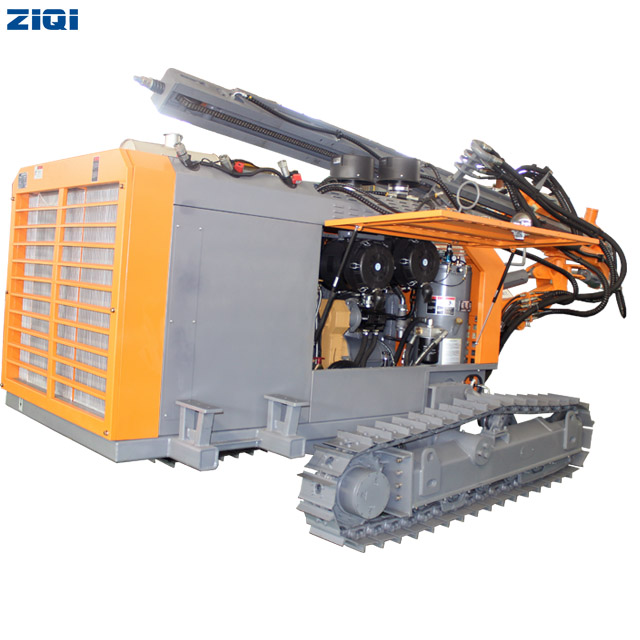

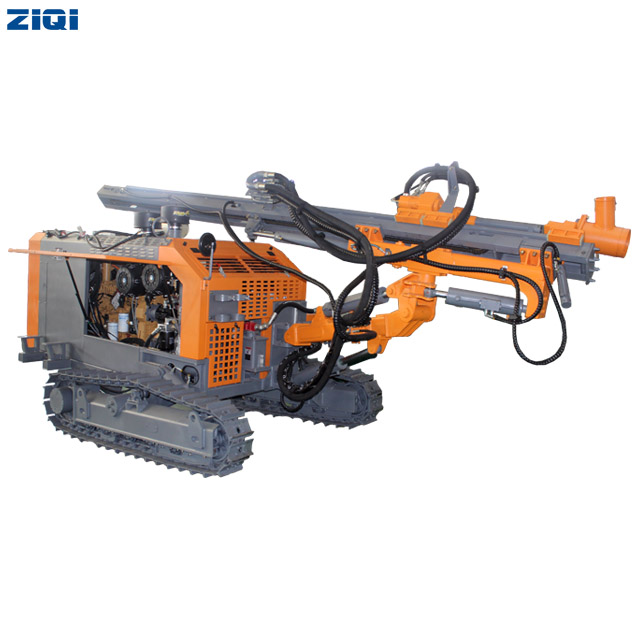

One Engine, Two Powers. Combining a robust Yuchai diesel engine with a built-in screw compressor. Cut fuel costs by 35% and boost mobility.
| Model | Hole Range (mm) |
Drill Pipe (mm) |
Air Delivery (m3/min) |
Rotation Speed (rpm) |
Feed Force (kN) |
Weight (kg) |
Dimension (mm) |
|---|---|---|---|---|---|---|---|
| GAT-36.8A | 90 - 110 | 60 × 2000 | 10 - 12 | 70 - 150 | 15 | 3760 | 4900×2000×2200 |
| GAT-58A (S) | 90 - 110 | 60 × 2000 | 12 - 15 | 100 - 120 | 15 | 3850 | 4450×2080×2460 |
| GAT-58A (M) | 90 - 110 | 60 × 2000 | 12 - 15 | 0 - 150 | 15 | 4270 | 5700×2130×2200 |
| GAT-58A (L) | 90 - 130 | 76 × 3000 | 13 - 16 | 0 - 150 | 15 | 4400 | 5700×2130×2200 |
* Note: All models equipped with Chain/Cylinder feed type. Rotation torque 1650-2200 N.m. Gradeability up to 30°.
| Model | Hole Range (mm) |
Drill Pipe (mm) |
Rotation Speed (rpm) |
Rotation Torque (N.m) |
Feed Force (kN) |
Pull Up Force (kN) |
Tramming Speed (km/h) |
Gradeability (°) |
Weight (kg) |
Dimensions (L×W×H mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| GAT-36.8A | 90 - 110 | 60 × 2000 | 70 - 150 | 1650 | 15 | 25 | 2.5 | 25° | 3760 | 4900 × 2000 × 2200 |
| GAT-58A (S) | 90 - 110 | 60 × 2000 | 100 - 120 | 1650 | 15 | 25 | 2.5 | 25° | 3850 | 4450 × 2080 × 2460 |
| GAT-58A (M) | 90 - 110 | 60 × 2000 | 0 - 150 | 1650 | 15 | 25 | 2.5 | 25° | 4270 | 5700 × 2130 × 2200 |
| GAT-58A (L) | 90 - 130 | 76 × 3000 | 0 - 150 | 2200 | 15 | 25 | 2.5 | 30° | 4400 | 5700 × 2130 × 2200 |
