100% Continuous Duty. The Ultimate Power for Laser Cutting PET Blowing (16-30 Bar).

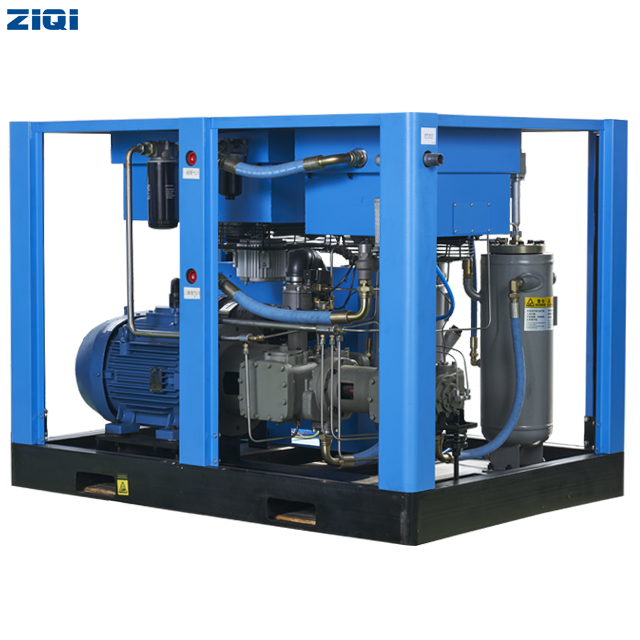

Unlike noisy piston boosters, ZIQI GAH uses aTwo-Stage Screwcompression element. This ensures low vibration, low noise, and massive airflow output.
Durability:Designed for 24/7 continuous load
Efficiency:Lower specific power consumption
Maintenance:8000+ hours service interval
Equipped with aPermanent Magnet Variable Speed Drivemotor. It automatically adjusts speed to match your real-time air demand.
Saving:Up to 35% energy savings
Stability:Constant pressure output (±0.1 bar)
Start:Soft start, no current peak
High-efficiency oil separator ensures oil content3ppm. Protects expensive laser lenses and PET molds from oil contamination.
All-in-one design available. Compressor, tank, and dryer can be mounted on a single skid for "Plug Play" installation.

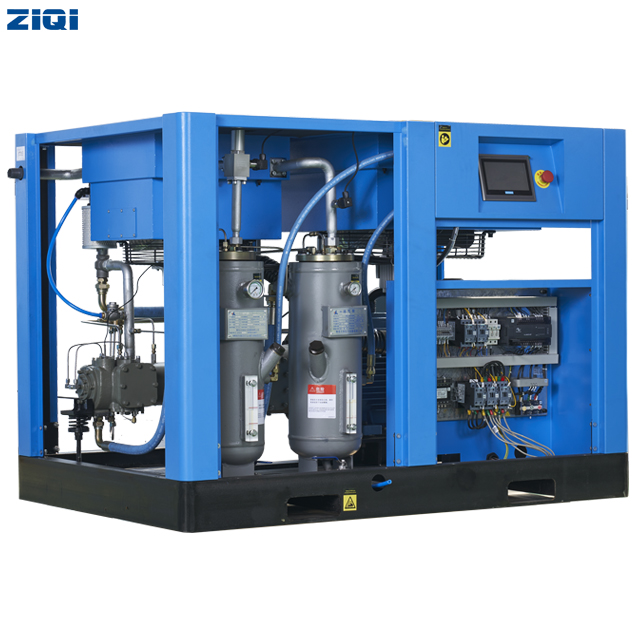

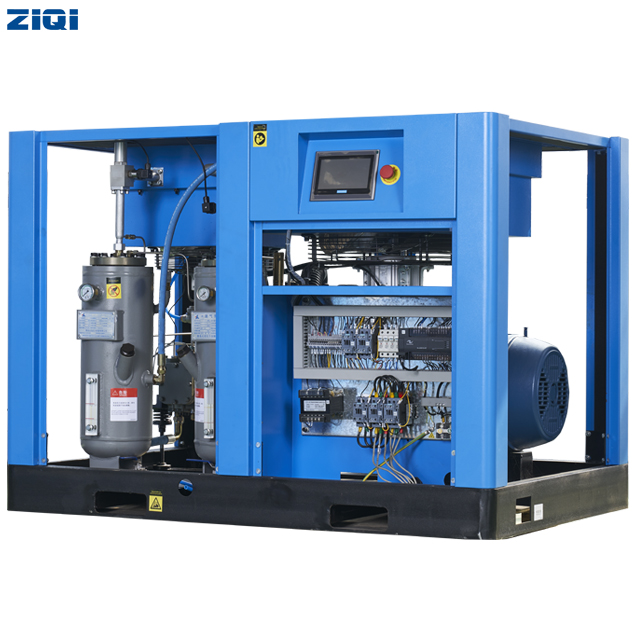

Advanced PLC touch screen monitors pressure, temperature, and current. Includes maintenance reminders and remote monitoring capability.
| Comparison | Traditional Piston Booster | ZIQI GAH Screw Booster |
|---|---|---|
| Duty Cycle | 50% - 60% (Needs cooling breaks) | 100% Continuous (24/7) |
| Noise Level | High Vibration Noise ( 85dB) | Low Noise Smooth ( 75dB) |
| Air Quality | High Oil Carryover | Low Oil Content ( 3ppm) |
| Energy Efficiency | Fixed Speed (High Waste) | PM VSD (35% Saving) |
| Model | Power (kW) | Max Pressure (bar) | Capacity (m³/min) | Outlet (inch) | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|
| GAH-15 | 15 | 16 / 25 / 30 | 1.5 / 1.2 / 1.0 | G 3/4" | 450 | 1100×800×1200 |
| GAH-18 | 18.5 | 16 / 25 / 30 | 2.2 / 1.8 / 1.5 | G 3/4" | 520 | 1200×850×1300 |
| GAH-22 | 22 | 16 / 25 / 30 | 2.8 / 2.4 / 2.0 | G 1" | 650 | 1380×900×1450 |
| GAH-30 | 30 | 16 / 25 / 30 | 3.8 / 3.2 / 2.8 | G 1" | 800 | 1500×1000×1600 |
| GAH-37 | 37 | 16 / 25 / 30 | 4.8 / 4.2 / 3.6 | G 1-1/2" | 950 | 1600×1100×1700 |
* Note: Capacity is measured at rated discharge pressure. PM VSD models are recommended for fluctuating air demand.
