Features a dual-rotor design to lower the compression ratio per stage. This significantly reduces internal leakage and increases air delivery by 15% compared to single-stage models.
Efficiency: Isothermal compression effect
Durability: Lower bearing load, longer life
Result: More air for the same power
Equipped with a genuineWEG IE4 motor(Brazil). The perfect match for the two-stage air end, ensuring the entire system operates at peak efficiency.
Protection: IP55 Dust & Water Proof
Insulation: Class F (B-level temp rise)
Quality: Global warranty & support
Combined with Two-Stage technology, the VSD inverter further reduces energy costs by eliminating unload power consumption.
Range: 5-60Hz wide regulation
Precision: Constant pressure ±0.01 MPa
Utilizes SKF bearings for both motor and air end. Two-stage design means lower load per bearing, extending life beyond 50,000 hours.
Reliability: Reduced axial/radial forces
Maintenance: Longer service intervals
Inter-stage cooling spray curtain design lowers the suction temperature of the second stage, approaching isothermal compression.
Efficiency: Closer to ideal compression
Design: Independent fan control
| Feature | Single-Stage Screw Compressor | ZIQI Two-Stage GAT Series |
|---|---|---|
| Energy Efficiency | Standard | 15% Higher (More Air) |
| Compression Ratio | High (Single Step) | Low (Two Steps) = Less Leakage |
| Bearing Load | High | Low (Longer Life) |
| Motor Class | IE2 / IE3 | WEG IE4 Super Premium |
| Air End Noise | Standard | Lower (Due to lower RPM) |
Representative Models (Two-Stage VSD Series)
| Model | Power (kW) | Pressure (bar) | Air Delivery (m³/min) | Noise dB(A) | Connection |
|---|---|---|---|---|---|
| GAT-22A | 22 | 8 | 3.50 | 64±2 | DN25 |
| GAT-37A | 37 | 8 | 6.20 | 65±2 | DN40 |

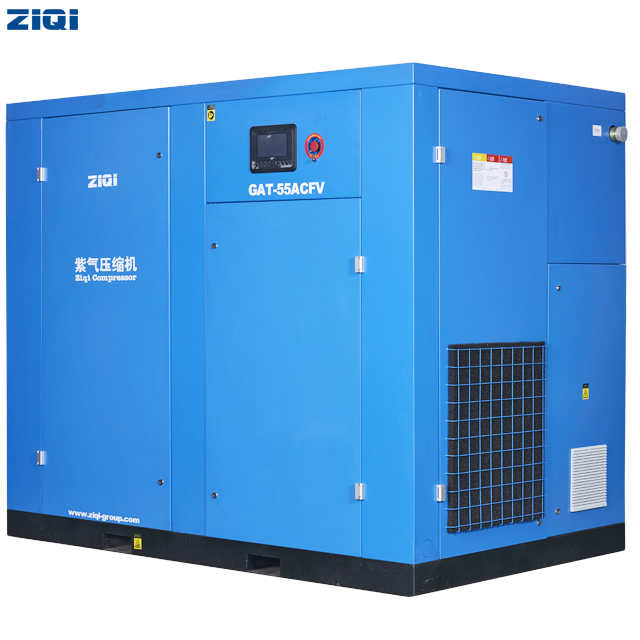

| GAT-55A | 55 | 8 | 11.80 | 68±2 | DN50 |
| GAT-75A | 75 | 8 | 14.75 | 72±2 | DN50 |
| GAT-132A | 132 | 8 | 24.00 | 76±2 | DN80 |
| GAT-250A | 250 | 8 | 49.00 | 80±2 | DN100 |
* Data based on 380V/50Hz models. 10 bar / 13 bar versions available upon request.
| Model | Max Exhaust Pressure | Air Displacement | Motor Power | Dimension (mm) | Weight (kg) |
Noise dB(A) |
Outlet | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MPa | bar | psi | m3/min | cfm | kW | HP | L | W | H | ||||
| GAT-22A | 0.6 | 6 | 87 | 4.2 | 148 | 22 | 30 | 1450 | 950 | 1250 | 810 | 64±2 | 25mm |
| 0.7 | 7 | 102 | 3.95 | 139 | |||||||||
| 0.8 | 8 | 116 | 3.5 | 124 | |||||||||
| 1.0 | 10 | 145 | 3.2 | 113 | |||||||||
| 1.3 | 13 | 189 | 2.6 | 92 | |||||||||
| GAT-30A | 0.6 | 6 | 87 | 6.2 | 219 | 30 | 40 | 1700 | 1100 | 1450 | 1085 | 65±2 | 40mm |
| 0.7 | 7 | 102 | 6.03 | 213 | |||||||||
| 0.8 | 8 | 116 | 5.4 | 191 | |||||||||
| 1.0 | 10 | 145 | - | - | |||||||||
| 1.3 | 13 | 189 | - | - | |||||||||
| GAT-37A | 0.6 | 6 | 87 | 7.1 | 251 | 37 | 50 | 1700 | 1100 | 1450 | 1150 | 65±2 | 40mm |
| 0.7 | 7 | 102 | 6.9 | 244 | |||||||||
| 0.8 | 8 | 116 | 6.7 | 237 | |||||||||
| 1.0 | 10 | 145 | 5.6 | 198 | |||||||||
| 1.3 | 13 | 189 | 5.4 | 191 | |||||||||
| GAT-45A | 0.6 | 6 | 87 | 8.3 | 293 | 45 | 60 | 1700 | 1100 | 1450 | 1250 | 68±2 | 40mm |
| 0.7 | 7 | 102 | 8.01 | 283 | |||||||||
| 0.8 | 8 | 116 | 7.8 | 275 | |||||||||
| 1.0 | 10 | 145 | 6.5 | 230 | |||||||||
| 1.3 | 13 | 189 | 6.2 | 219 | |||||||||
| GAT-55A | 0.6 | 6 | 87 | 11.4 | 403 | 55 | 75 | 2350 | 1450 | 1950 | 2300 | 72±2 | 50mm |
| 0.7 | 7 | 102 | 10.8 | 381 | |||||||||
| 0.8 | 8 | 116 | 10.0 | 353 | |||||||||
| 1.0 | 10 | 145 | 9.3 | 328 | |||||||||
| 1.3 | 13 | 189 | - | - | |||||||||
| GAT-75A | 0.6 | 6 | 87 | 16.0 | 565 | 75 | 100 | 2350 | 1450 | 1950 | 2650 | 72±2 | 50mm |
| 0.7 | 7 | 102 | 14.2 | 501 | |||||||||
| 0.8 | 8 | 116 | 14.0 | 494 | |||||||||
| 1.0 | 10 | 145 | 13.0 | 459 | |||||||||
| 1.3 | 13 | 189 | 9.5 | 335 | |||||||||
| GAT-90A | 0.6 | 6 | 87 | 19.0 | 671 | 90 | 120 | 3000 | 1750 | 1920 | 3600 | 76±2 | 65mm |
| 0.7 | 7 | 102 | 18.0 | 636 | |||||||||
| 0.8 | 8 | 116 | 16.5 | 583 | |||||||||
| 1.0 | 10 | 145 | 16.0 | 565 | |||||||||
| 1.3 | 13 | 189 | 13.0 | 459 | |||||||||
| GAT-110A | 0.6 | 6 | 87 | 24.0 | 847 | 110 | 150 | 3000 | 1750 | 1920 | 3980 | 77±2 | 65mm |
| 0.7 | 7 | 102 | 22.0 | 777 | |||||||||
| 0.8 | 8 | 116 | 18.5 | 653 | |||||||||
| 1.0 | 10 | 145 | 18.0 | 636 | |||||||||
| 1.3 | 13 | 189 | 16.0 | 566 | |||||||||
| GAT-132A | 0.6 | 6 | 87 | 26.5 | 936 | 132 | 175 | 3000 | 1750 | 1920 | 3980 | 77±2 | 65mm |
| 0.7 | 7 | 102 | 26.0 | 918 | |||||||||
| 0.8 | 8 | 116 | 23.0 | 812 | |||||||||
| 1.0 | 10 | 145 | 22.0 | 777 | |||||||||
| 1.3 | 13 | 189 | 18.0 | 636 | |||||||||
| GAT-160A | 0.6 | 6 | 87 | 32.5 | 1148 | 160 | 215 | 3000 | 1800 | 2000 | 4050 | 76±2 | 80mm |
| 0.7 | 7 | 102 | 32.0 | 1130 | |||||||||
| 0.8 | 8 | 116 | 28.0 | 989 | |||||||||
| 1.0 | 10 | 145 | 26.0 | 918 | |||||||||
| 1.3 | 13 | 189 | 22.5 | 795 | |||||||||
| GAT-185A | 0.6 | 6 | 87 | 41.0 | 1448 | 185 | 248 | 3000 | 1800 | 2000 | 4260 | 77±2 | 80mm |
| 0.7 | 7 | 102 | 37.9 | 1338 | |||||||||
| 0.8 | 8 | 116 | 32.5 | 1147 | |||||||||
| 1.0 | 10 | 145 | 31.0 | 1094 | |||||||||
| 1.3 | 13 | 189 | 26.0 | 918 | |||||||||
